TAYEE L9

Autonomous Sweeper

Out of Box Autonomy, Built for Urban & Commercial Sanitation

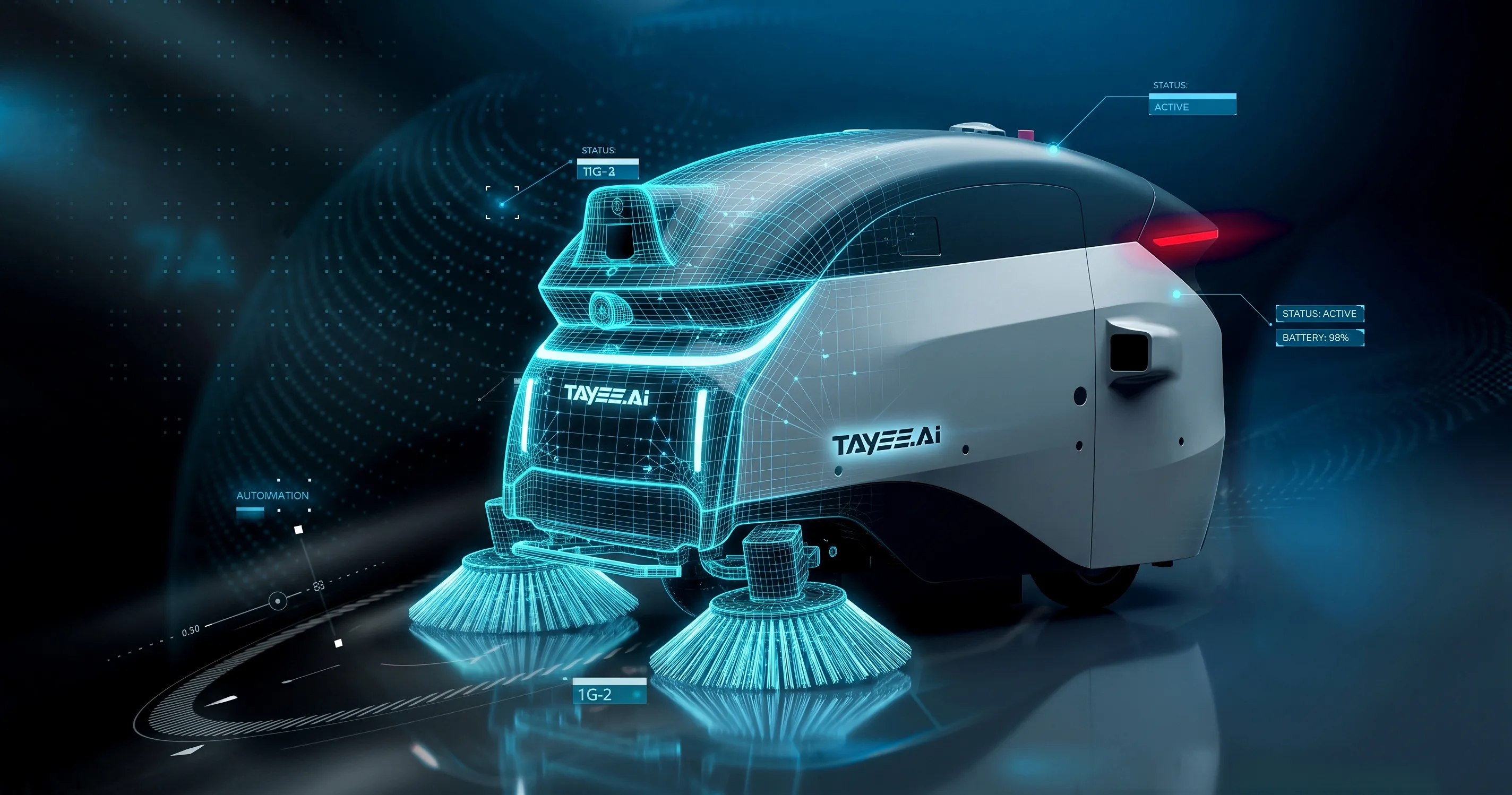

TAYEE L9 autonomous sweeper in a teal wireframe visualization

Product Overview

Built for municipal streets and commercial campuses, the TAYEE L9 Autonomous Sweeper combines our proprietary TPM (Tayee Physical Model) with 256 TOPS of onboard AI compute to navigate busy, ever-changing spaces in any weather. Unlike legacy autonomous sweepers that require weeks of HD mapping and site engineering, the L9 reads its surroundings like a human operator — sweeping tight to curbs and yielding safely to pedestrians, cyclists, and traffic right out of the box. Complete with automatic charging, water refilling, and self-bagging waste disposal, it delivers true 24/7 unattended cleaning.

TPMPhysical AI Brain256TOPSComputing Platform100L Auto-Bagging Waste BinRear LiDAR3D Fisheye CameraUltrasonic Sensor Array

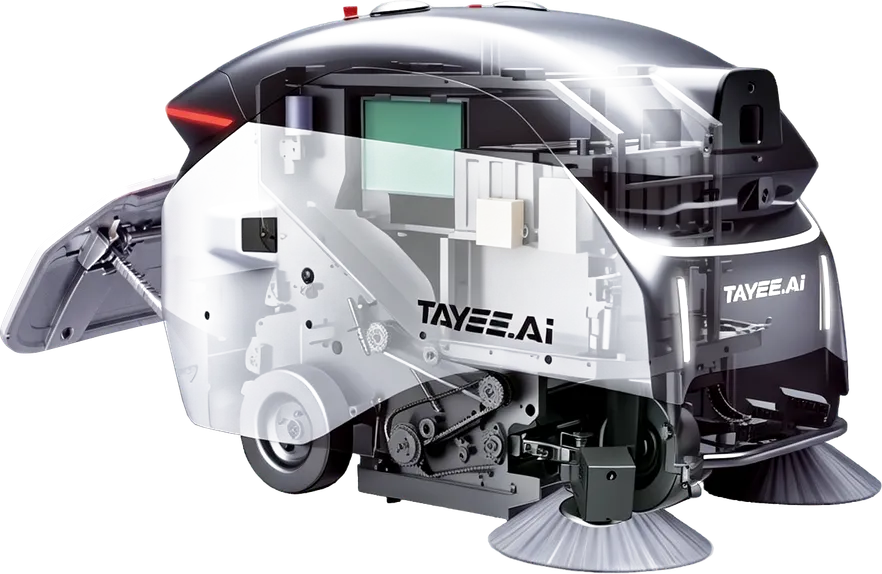

TAYEE L9 Autonomous Sweeper hardware cutaway
HD Vision CameraFront LiDARDual-Antenna RTK Array50L Clean Water Tank10 kWhLithium Power BatteryDual Extendable Side Brushes
  • TPMPhysical AI Brain
  • 256TOPSComputing Platform
  • 100L Auto-Bagging Waste Bin
  • Rear LiDAR
  • 3D Fisheye Camera
  • Ultrasonic Sensor Array
  • HD Vision Camera
  • Front LiDAR
  • Dual-Antenna RTK Array
  • 50L Clean Water Tank
  • 10 kWhLithium Power Battery
  • Dual Extendable Side Brushes

Why TAYEE L9

  • SMARTER

    Reads real-world streets like an experienced operator. Powered by TPM Physical AI and an integrated electric chassis, the TAYEE L9 sweeps tight to curbs, avoids moving traffic smoothly, and performs reliably through glare, rain, and night shifts.

  • LOWER COST

    Zero HD mapping and zero on-site engineering. Unbox the L9 on any city block or commercial site and start sweeping in minutes — eliminating costly commissioning fees, ongoing map maintenance, and manual labor hours.

  • WORRY-FREE

    Managed through the TOS (Tayee Operating System) cloud platform, L9 fleets schedule routes, adapt to unexpected road changes, and dock automatically to recharge, refill water, and bag waste for continuous 24/7 uptime.

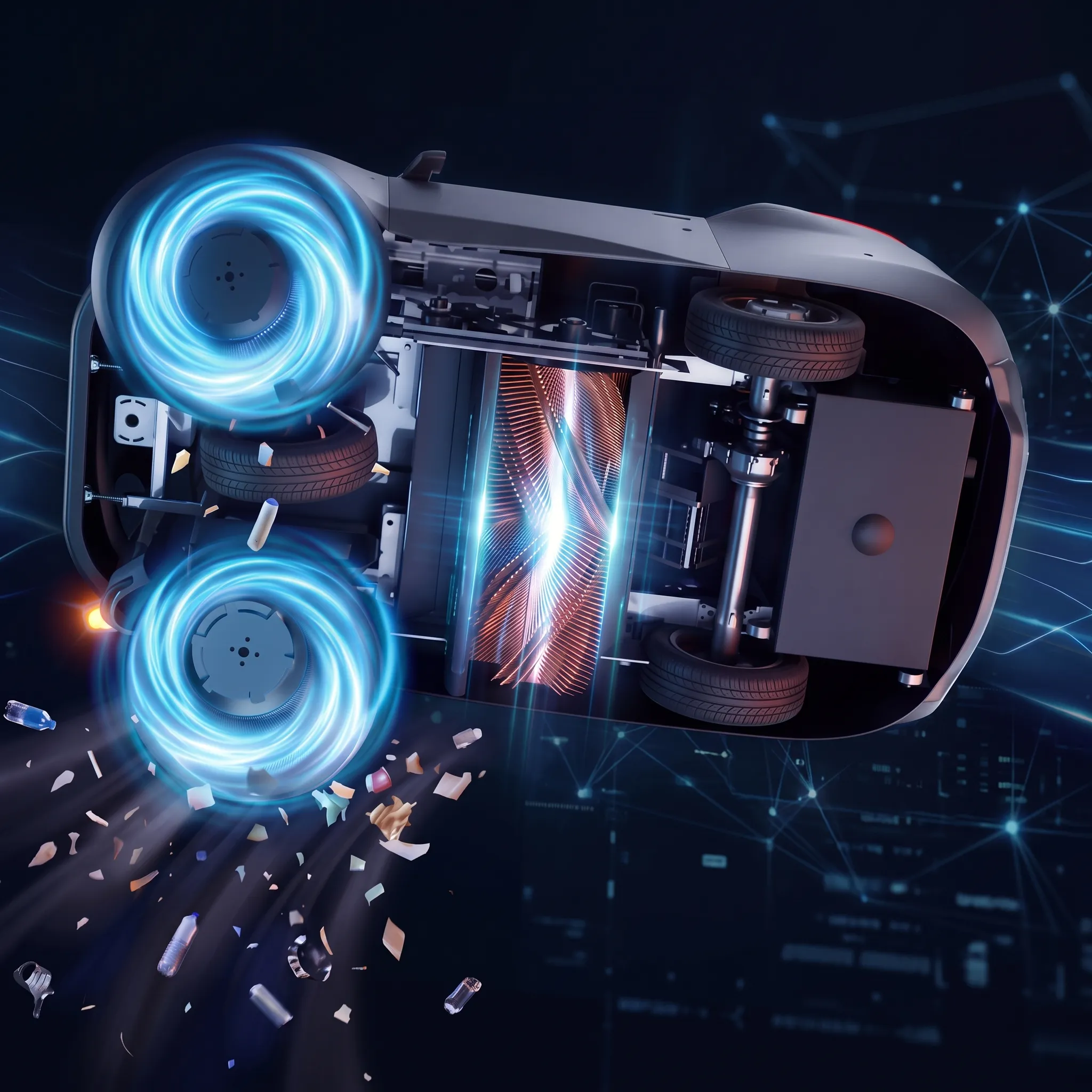

Self-developed chassis and dual-brush cleaning system

Purpose-Built Electric Chassis

Heavy-Duty Sweeping Performance

Engineered from the ground up — never retrofitted from a manual cart — the TAYEE L9 pairs an automotive-grade electric chassis with dual extendable side brushes and a high-efficiency main roller. Its rugged, service-friendly build ensures high uptime and low maintenance across demanding outdoor routes.

  • 1350mmSweeping Width
  • 4700m²/hCleaning Efficiency
TOS platform: monitoring sweeping robots via phone and backend

TOS (Tayee Operating System) Fleet Platform

24/7 Scheduled & On-Demand Cleaning · Built for Unattended Fleet Operations

  • Live 360° Site Visibility

    Monitor live 360° camera views, robot locations, route coverage, and water or hopper levels anytime from mobile or web dashboards.

  • Smart Fleet Dispatch

    Schedule shifts and coordinate multi-robot fleets across districts or campuses. Open REST APIs integrate cleanly with municipal or facility management platforms.

  • Hands-Free Docking

    With the optional service station, the L9 automatically recharges, refills water, and seals waste bags — then resumes sweeping right where it left off.

No Pre-Mapping · Out-of-the-Box Deployment · 24/7 Autonomy

TAYEE L9 Autonomous Sweeper

No Pre-Mapping · Out-of-the-Box Deployment · 24/7 Autonomy

Core AI Engine
TPM (Tayee Physical Model)
Navigation Mode
Mapless Visual-Semantic Navigation & Predictive Avoidance
Dimensions (Sweeping)
1,980 × 1,350 × 1,300 mm (78.0 × 53.1 × 51.2 in)
Dimensions (Transport)
1,980 × 1,070 × 1,300 mm (78.0 × 42.1 × 51.2 in)
Min. Turning Radius
1,070 mm (42.1 in)
Battery Capacity
10 kWh Lithium Power Battery
Continuous Runtime
Up to 4 hours
Max Gradeability
20% (11.3°)
Ingress Protection
IPX5 (All-Weather Water Resistant)
Operating Temperature
-10°C to 50°C (14°F to 122°F)
Computing Platform
256 TOPS AI Domain Controller
Sensor Suite
Multi-LiDAR, HD Vision, 3D Fisheye, Ultrasonic & Dual-Antenna RTK
Chassis Architecture
Purpose-Built Electric Drive-by-Wire
Sweeping Width
1,350 mm (53.1 in)
Cleaning Efficiency
4,700 m²/h (50,590 sq.ft/h)
Max Operating Speed
6 km/h (3.7 mph)
Hopper Capacity
100 L (26.4 gal) with Auto-Bagging
Water Tank Capacity
50 L (13.2 gal)
Auto Charging & Refilling
Supported (with optional Workstation)
Fleet Software
TOS Cloud Platform & Open REST APIs
